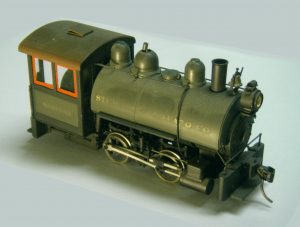

Individual parts from Grandt Line Kit #93060 Porter 18 Ton 0-4-0 Saddle Tank
These items may be available as separate items or by the bag.
This is our parts list…Please call for price and availability. Not all parts are in stock, and no new production runs will be made.
Sorry…but these are not available right now.
| Part# | Description | Qty |
| 3060-01 | complete bag #1 (includes the following) | |
| 3060-1 | frame | 2 |
| 3060-2 | fire box front | 1 |
| 3060-3 | a. front pilot beam b. rear pilot beam |
1 |
| 3060-4 | a. front frame crossmember b. equalizer bar c, d, e. cinder clean-out pipe f. cylinder block g. mounting block |
1 |
| 3060-5 | a. brake bracket b. brake shoe assembly c. brake cylinder d. brake cylinder cap |
2 |
| 3060-02 | complete bag #2 (includes the following) | |
| 3060-6 | cab floor | 1 |
| 3060-7 | rear frame extensions (R,L) | 1 |
| 3060-8 | a. fire box (upper right) b. fire box (upper left) |
1 |
| 3060-9 | a. fire box (lower rear) b. ash pan (right c. ash pan (left) d. ash pan (rear) e. front pilot bracket (right) f. front pilot bracket (left) |
1 |
| 3060-10 | a. ash pan bottom b. crosshead yoke c. water pipe connector |
1 |
| 3060-51 | a. coupler pocket (upper) b. coupler pocket (lower) c. coupler pocket flange d. smoke box front nut retainer |
2 |
| 3060-75 | coupler | 2 |
| 3060-04 | complete bag #4 (includes the following) | |
| 3060-17 | cylinder block | 2 |
| 3060-18 | a. cylinders b. cylinder cap (rear) c. valve chest d. valve chest cover e. valve levers |
2 |
| 3060-19 | a. cylinder block connecting flange b. valve stuffing box front c. valve stuffing box rear d. cylinder stuffing box e. sander pipe brackets f. builders plates |
2 |
| 3060-20 | a. main rod b. side rod c. cross head guide |
2 |
| 3060-21 | a. headlight bracket (front mount) b. whistle c. pop valves d. cross heads e. coupler pins f,g,h. hand-rail posts i. sander rod post j. main rod pivot pin |
2 |
| 3060-22 | a. front pilot brace (right b. front pilot brace (left) c. valve reverse lever d. valve reverse spring rod |
1 |
| 3060-68 | 1-1/2″ hex nuts | 16 |
| 3060-58 | valve stem | 2 |
| 3060-59 | blower pipe (.020 wire) | 1 |
| 3060-60 | reach rod | 1 |
| 3060-61 | injector delivery pipe | 22 |
| 3060-05 | complete bag #5 (includes the following) | |
| 3060-24 | cab front | 1 |
| 3060-25 | cab side (left) | 1 |
| 3060-26 | cab side (right) | 1 |
| 3060-27 | cab rear | 1 |
| 3060-28 | cab roof | 1 |
| 3060-29 | coal box | 1 |
| 3060-30 | cab sub floor | 1 |
| 3060-31 | cab window frames, arm rest | 4 |
| 3060-06 | complete bag #6 (includes the following) | |
| 3060-32 | boiler | 1 |
| 3060-33 | smoke box | 1 |
| 3060-34 | smoke box front | 1 |
| 3060-35 | rear boiler section | 1 |
| 3060-36 | back head, oil can shelf | 1 |
| 3060-37 | stack with base | 1 |
| 3060-66 | headlight | 1 |
| 3060-67 | number plate assortment | 1 |
| 3060-07 | complete bag #7 (includes the following) | |
| 3060-37 | water tank body | 1 |
| 3060-38 | water tank rear | 1 |
| 3060-39 | water tank front | 1 |
| 3060-40 | a. water tank bottom b. running board c. pilot step (front) d. pilot (rear) |
1 |
| 3060-41 | a. steam dome b. sand dome covers d. water hatch e. water hatch cover |
1 |
| 3060-42 | sander pipe | 4 |
| 3060-55 | handrail wire (.020 x 4″) | 3 |
| 3060-56 | sander rods (.020 wire–preformed_ | 1 |
| 3060-57 | lubricator pipe (.010 x 2″ wire) | 1 |
| 3060-69 | bell and bracket | 1 |
| 3060-08 | complete bag #8 (includes the following) | |
| 3060-43 | headlight handle material | 1 |
| 3060-44 | front pickup (.005 x .040 x .7 long) | 2 |
| 3060-45 | rear pickup (.995 x .060 x 1.2 long) | 2 |
| 3060-46 | front assembly screw (2-56 x 5/8) | 1 |
| 3060-47 | 2-56 hex nut | 1 |
| 3060-48 | #1 self-tapping screws | 2 |
| 3060-49 | grab irons | 2 |
| 3060-50 | valve lever spring | 1 |
| 3061 | complete Cab Detail kit (includes the following) | |
| 3061-01 | a. turret b. injector steam lines (lagged) and globe valves c. gauge stand d. steam gauge e. gauge lamp |
1 |
| 3061-02 | a. injector body b. waste pipe c. delivery pipe |
2 |
| 3061-03 | a. injector suction pipe (right) b. injector suction pipe (left) c. blower valve and pipe |
1 |
| 3061-04 | water glass and piping | 1 |
| 3061-05 | a. brake valve body and piping (lagged) b. valve handle c. Lunkenheimer lubricator d. globe valve e. waste and brake lines |
1 |
| 3061-06 | a. Detroit lubricator body b. mounting bracket c. supply line globe valve d. steam valve handle e. sander operating rod handles |
1 |
| 3061-07 | a. trottle quadrant b. throttle lever c. 1 qt. pump oil can d. 1-1/2 pt valve oil can |
1 |
| 3061-08 | a. reverse lever with rear quadrant section b. front quadrant section c. operating rod |
1 |
| 3061-09 | valve handle assortment | 18 |
| 3061-10 | cab seats | 1 |
| 3061-11 | bell | 1 |
