HO Scale – Framed Windows

  • Measurements are width followed by height in inches
  • Measurements included in descriptions are for the proto-type sash dimensions
  • “Outside” measurement includes frame of window/door–Actual Size
  • “Fits In” measurement is the opening necessary to accommodate the window/door–Actual Size
FRAMED WINDOWS
Part
No.		 Image Description measurements Qty Price
Outside

(w) x (h)

 Fits In

(w) x (h)
5242 HORIZONTAL WINDOW 6 PANE .565 x .390 .515 x .365 8 3.30
5081 52″ x 33″ HORIZONTAL SLIDING WINDOW .700 x .500 .650 x .440 8 3.30
5030 27″ x 48″ WINDOW

DOUBLE HUNG -8 PANE

 .400 x .675 .350 x .590 8 3.30
5029 27″ x 64″ WINDOW

DOUBLE HUNG -8 PANE

 .405 x .860 .360 x .780 8 3.30
5311 35″ x 66″ 4-PANE DOUBLE HUNG WINDOW .410 x .750 .335 x .690 8 3.30
5032 36″ x 52″ WINDOW

DOUBLE HUNG-16 PANE

 .495 x .720 .450 x .620 8 3.30
5031 36″ x 64″ WINDOW

DOUBLE HUNG -12 PANE

 .530 x .850 .475 x .785 8 3.30
5117 36″x 64″ WINDOW

DOUBLE HUNG -4 PANE

 .545 x .850 .450 x .775 8 3.30
5250 20″ x 70″ WINDOW

DOUBLE HUNG

 .315 x .900 .275 x .850 8 3.30
5222 59″ x 64″ DOUBLE WINDOW

-16 PANE

 .770 x .870 .725 x .800 4 3.30
5251 54″ X 28″ HORIZONTAL WINDOW

SINGLE SASH, 8 LIGHT

 .690 x .420 .640 x .350 8 3.30
5215 30″ x 62″ WINDOW

DOUBLE HUNG -4 PANE

 .440 x .825 .375 x .775 8 3.30
5233 32″ x 70″ WINDOW

DOUBLE HUNG- 6/4 PANE

 .450 x .900 .420 x .850 8 3.30
5252 DOUBLE WINDOW 1.035 x .870 .970 x .800 4 3.30
5302 30″ X 88″ SINGLE WINDOW (3 LIGHT) DOUBLE HUNG

64″ X 88″ DOUBLE WINDOW (6 LIGHT) DOUBLE HUNG

 .440 x 1.1

.830 x 1.1

 .400 x 1.065.785 x 1.065 4 SETS 3.30
5204 100″ x 92″ TRIPLE WINDOW

DOUBLE HUNG-6 PANE

 1.265 x 1.220 1.20 x 1.120 3 3.30
5205 65″ x 92″ WINDOW

DOUBLE HUNG

 .870 x 1.220 .810 x 1.130 3 3.30
5193 36″X76″ WINDOW

DOUBLE HUNG- 2/9 PANE

RGS Style Depot

 .500 x .980 .450 x .900 8 3.30
5203 36″ x 82″ DOUBLE WINDOW

22 PANE

RGS Style Depot

 .990 x .950 .950 x .850 4 3.30
5208 35″ x 48″ DOUBLE WINDOW

DOUBLE HUNG-32 LIGHT
Yosemite Valley RR/Bagby Station

 1.00 x .870 .970 x .830 4 3.30
5209 34″ x 67″ SINGLE WINDOW

DOUBLE HUNG–16 PANE
Yosemite Valley RR/Bagby Station

 .420 x .800 .400 x .780 6 3.30
5194 WINDOW SET:

32″ x 53″ SINGLE–9 LIGHT

58″X53″ DOUBLE–18 LIGHT

RGS Style Depot

 .670 x .610

.360 x .610

 .620 x .525

.320 x .535

 2 SETS 3.30
5199 WINDOW SET

24″ x 44″ SINGLE -10 PANE

51.5″ x 51″ DOUBLE -20 PANE

RGS Style Depot

 .680 x .70

.360 x .630

 .630 x .630

.325 x .550

 2 SETS 3.30
5210 186″ x 70″ WINDOW

-48 PANE WINDOW
Yosemite Valley RR/Bagby Station

 2.130 x .860 2.110 x .810 2 3.30
5195 36″ x 82″ WDW

DOUBLE HUNG-4 PANE

RGS Style Depot

 .550 x 1.040 .500 x 1.00 8 3.30
5196 WINDOW SET

72″ x 82″ DOUBLE

24″ x 82″ SINGLE

RGS Style Depot

 1.07 x 1.045

.400 x 1.045

 1.03 x 1.00

.355 x 1.00

 2 SETS 3.30
5282 30″ x 56″ WINDOW

DOUBLE HUNG–6/6 LIGHT

 .465 x .735 .400 x .700 9 3.30
5283 38″ X 86″ WINDOW
DOUBLE HUNG–6/6 LIGHT		 .550 x 1.080 .485 x 1.040 6 3.30
5097 42″ x 91″ ENGINE HOUSE WINDOW
-18 PANE		 .690 x 1.10 .550 x 1.075 6 3.30

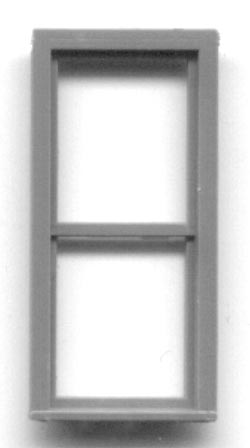

5273 28″ x 70″ WINDOW
DOUBLE HUNG–1/1 LIGHT		 .400 x .875 .365 x .825 8 3.30
5284 28″ x 48″ WINDOW
DOUBLE HUNG–2/1 LIGHT		 .400 x .675 .350 x .500 9 3.30

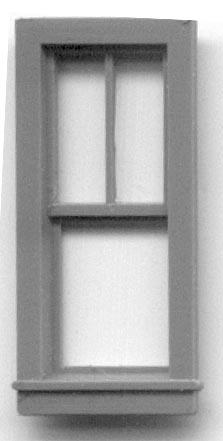

5285 28″ x 64″ WINDOW
DOUBLE HUNG–2/1 LIGHT		 .400 x .890 .350 x .810 9 3.30

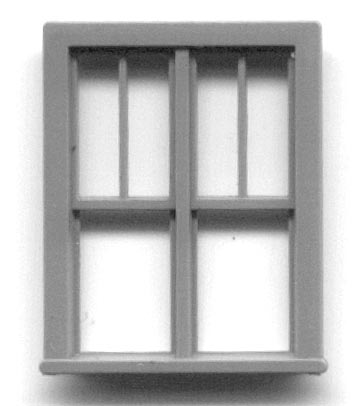

5286 42″ X 62″ DOUBLE WINDOW
DOUBLE HUNG–2/1 LIGHT		 .620 x .790 .580 x .750 6 3.30
5288 27″ X 78″3-PANE WINDOW
2/1 LIGHT		 .410 x .990 .350 x .940 6 3.30
5287 56″ X 82″ POOL HALL WINDOW
3/2 LIGHT		 .740 x 1.025 .710 x 1.00 4 3.30
5281 63″ x 75″ COMMERCIAL WINDOW
6-LIGHT		 .875 x 1.0 .810 x .930 4 3.30
5206 DIAMOND PATTERNED PICTURE WINDOW .880 x 1.210 .770 x 1.050 2 3.75
5223 GABLE AND DORMER WINDOW 1.20 x .835 1.175 x .800 4 3.30
5265 32″ x 70″ WINDOW
DOUBLE HUNG, 2/2 LGHT		 .440 x .890 .370 x .800 8 3.30
5115 VICTORIAN STOREFRONT SET:
DOUBLE WINDOW
DOOR WITH TRANSOM		 .800 x 1.250
.500 x 1.450		 .77 x 1.2
.47 x 1.4		 1 SET 2.75
5116 VICTORIAN WINDOW SET
1 DOUBLE WINDOW
2 SINGLE WINDOWS
30″ x 61″ SASH, DBL HUNG		 .800 x .830
.420 x .830		 .77 x .80
.375 x .8		 2 SETS 3.30
5264 VICTORIAN WINDOW SET
1 DOUBLE WINDOW
2 SINGLE WINDOWS
28″ x 75″ SASH, DBL HUNG		 .760 x 1.0
.410 x .980		 .715 x .9
.37 x .9		 2 SETS 3.30
5060 30″ x 69″ STATION WINDOWS
DOUBLE HUNG, 2/2 LIGHT		 .415 x .900. 380 x .830 8 3.30
5221 63″ x 69″ DOUBLE WINDOW
-8 PANE		 .850 x .910 .800 x .850 4 3.30
5160 66″ x 80″ QUEEN ANNE DOUBLE WINDOW
DOUBLE HUNG -4 PANE		 .880 x 1.070 .790 x .960 3 3.30
5161 32″ x 80″ QUEEN ANNE SINGLE WINDOW
DOUBLE HUNG –4/4 LIGHT		 .475 x 1.065 .375 x .945 3 3.30
5014 36″ x 87″ DURANGO STATION WINDOW
-4 PANE  Durango Station		 .540 x 1.115 .460 x 1.015 8 4.25
5259 TRIANGLE PEDIMENT DOUBLE WINDOW AND DOOR SET

36″ x 90″ door
28″ x 80″ window sashes

 door:
.515 x 1.370window:
.750 x 1.07		 .480 x 1.290

.710 x .950

 2 SETS 3.30
5234 30″ x 86″ PEAKED PEDIMENT WINDOW
coordinates with window #5220		 .430 x 1.185 .370 x 1.00 8 3.30
5220 30″ x 68″ TRIANGLE PEDIMENT WINDOW
DOUBLE HUNG
coordinates with window 5234		 .430 x 1.035 .415 x .850 8 3.30
5247 25″ x 96″ TRIANGLE PEDIMENT WINDOW FOR CHURCH OR RESIDENCE
DBL HUNG 5/6 LIGHT
coordinates with window 5248		 .415 x 1.235 .330 x 1.140 8 3.30
5150 41″ x 90″ PEAKED CAP WINDOW
HALF ROUND UPPER SASH		 .550 x 1.160 .480 x 1.040 8 3.30
5212 4’6″ x 6’3″ DOUBLE ROUND TOP WINDOW
DOUBLE HUNG		 .670 x .910 .650 x .875 4 3.30
5230 24″ x 72″ ROUND PEDIMENT WINDOW
DOUBLE HUNG		 .385 x .985 .355 x .840 8 3.30
5192 WINDOW ASSORTMENT GRAB BOX Asst 26.95
5313 CLEAR PLASTIC SHEETS (.010) TO BE USED IN WINDOWS–4.25″ x 5.5″ 2 Sheets 3.30
